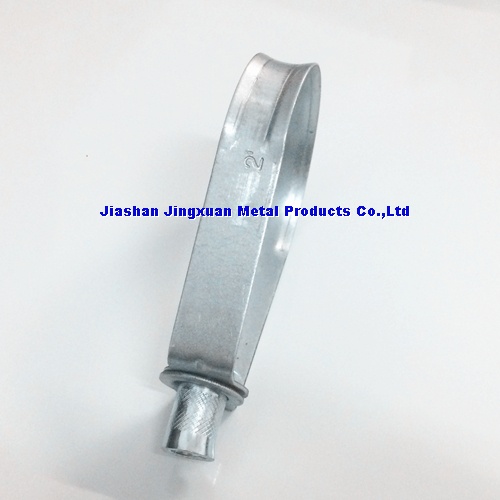

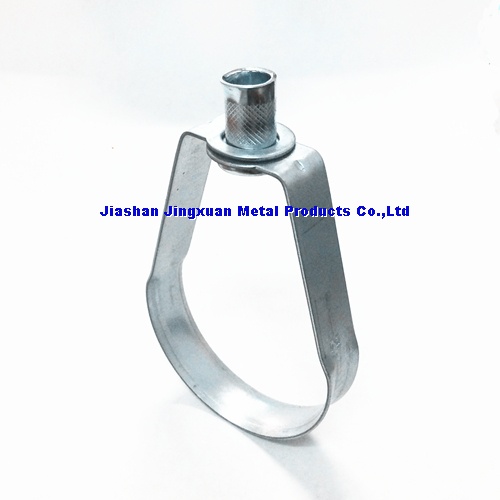

Swivel Band Hanger |
|
|
| Product name : Swivel Band Hanger |
Item : S |
Swivel Ring Hangers SPRINKLER CLAMP Loop Hangerss RIGID /IMC Conduit
| ITEM |
description |
Pipe
Size |
Dimensions
In |
Dimensions
mm |
ROD Size |
Width
mm |
Thickness
mm |
| S-050 |
Swivel Band Hanger |
1/2" |
0.840 |
21.336 |
3/8" |
16.00 |
1.20 |
| S-075 |
Swivel Band Hanger |
3/4" |
1.050 |
26.670 |
3/8" |
16.00 |
1.20 |
| S-100 |
Swivel Band Hanger |
1" |
1.315 |
33.401 |
3/8" |
16.00 |
1.20 |
| S-125 |
Swivel Band Hanger |
1-1/4" |
1.660 |
42.164 |
3/8" |
16.00 |
1.20 |
| S-150 |
Swivel Band Hanger |
1-1/2" |
1.900 |
48.260 |
3/8" |
16.00 |
1.20 |
| S-200 |
Swivel Band Hanger |
2" |
2.375 |
60.325 |
3/8" |
16.00 |
1.20 |
| S-250 |
Swivel Band Hanger |
2-1/2" |
2.875 |
73.025 |
3/8" |
22.00 |
1.50 |
| S-300 |
Swivel Band Hanger |
3" |
3.500 |
88.900 |
3/8" |
22.00 |
1.50 |
| S-350 |
Swivel Band Hanger |
3-1/2" |
4.000 |
101.600 |
3/8" |
22.00 |
1.50 |
| S-400 |
Swivel Band Hanger |
4" |
4.500 |
114.300 |
3/8" |
22.00 |
1.50 |
| S-500 |
Swivel Band Hanger |
5" |
5.562 |
141.275 |
1/2" |
19.00 |
2.50 |
| S-600 |
Swivel Band Hanger |
6" |
6.625 |
168.275 |
1/2" |
19.00 |
2.50 |
| S-800 |
Swivel Band Hanger |
8" |
8.625 |
219.075 |
1/2" |
19.00 |
2.50 |
|
|
